Effect of Pre-load and Rigidity

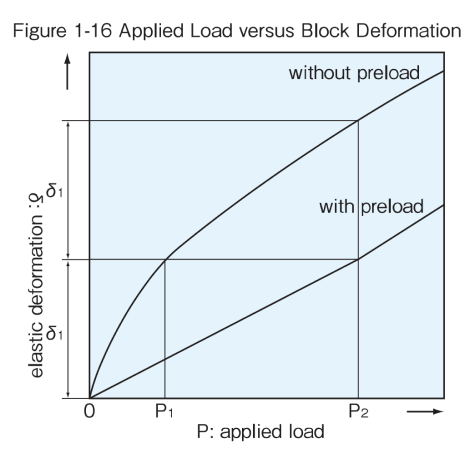

The rigidity of a linear systems must be taken into consideration when it is to be used in high-precision positioning devices or high-precision machinery. Preloaded slide guides and ball splines, which use balls as the rolling elements, are available upon request to meet the need for greater rigidity. If a force is applied to the ball elements without preload, an elastic deformation proportional to the applied force to the 2/3 power will result. Therefore,the elastic deformation is relatively large during the initial loading stage, however then becomes smaller
as the load increases
Preloading on the rolling elements absorbs the deformation of the block under the same loading. Please contact NB for available data in regard to rigidity.
Types of Preload and its Specification
Preload is categorized into three ranges: standard, light, and medium for option. In the NB linear systems, preload is applied by installing rolling elements that are slightly larger than standard. Therefore, the specification of the preload is expressed by a negative value.
