SLIDE ROTARY BUSH
SRE TYPE
The SRE type series has a structure that can provide both linear and rotational motion functions without restrictions and can be made much more compact than the conventional method of using both linear and rotational bearings.
Features
The NB SLIDE ROTARY BUSH has a cylindrical steel outer ring with a cage and the linear guide portion of the cage is designed and manufactured to allow smooth ball circulation. The retainer can rotate freely in the radial direction to provide smooth linear and rotational motion.
Smooth operation
The inner surface of the outer ring is formed so that it can smoothly follow linear and rotational movements and the load is equalized.
High load handling
Large-diameter balls are used to withstand high loads.
Smooth rotation
Balls are arranged circumferentially on both sides of the retainer to provide smooth rotational motion regardless of the mounting direction.
Full compatibility
Installation is compatible with slide bushings SM and SMK types, and slide units SMA (W), AK (W), and SMP types.
Structure

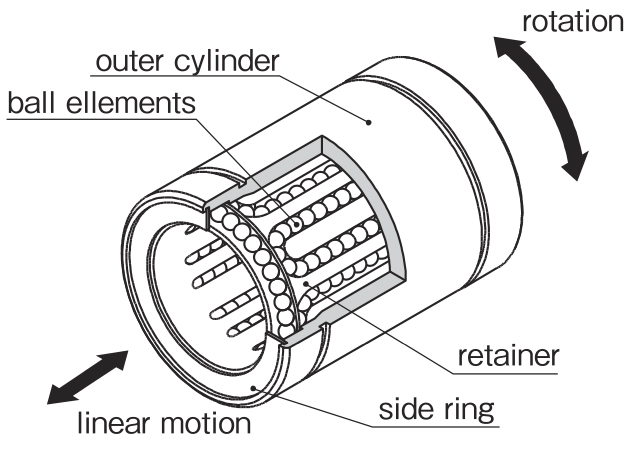

Structure of SRE type
