As a linear bearings manufacturer, NB is serving a variety of customers in many industries such as general machinery, semiconductor equipment, special purpose machines.
The NB SPINDLE is a further contribution to the industry. From parts to the spindle unit NB conducts integrated production through total manufacturing.
Please contact us for any requirement.

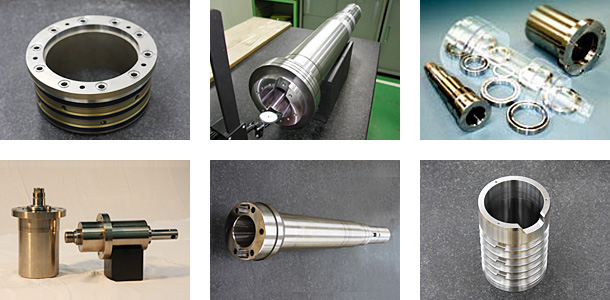

NB SPINDLE is backed by expertise gained from decades of experience in high accuracy machining.
NB keeps supplying high quality products through skilled labor with time-nurtured skills, time-tested production process and technology, in addition to a help of the state-of-the art technology and equipment.
We have a belief that high processing technology is the key to customer-satisfaction.
| Outer Surface Machining | Range |
| Maximum diameter | 650mm |
| Maximum length | 6000mm |
| Surface roughness | Ra0.4 |
| Straightness | customer specification |
| Concentricity | customer specification |
| Perpendicularity | customer specification |
| Cylindricity | customer specification |
| Internal Surface Grinding | straight or tapered internal portion |
| Deep Hole Machining | ||
| Hole diameter | Maximum length | |
| one side | through hole | |
| Φ2～2.5mm | 200 | 400 |
| Φ3～3.5mm | 300 | 600 |
| Φ4～8mm | 500 | 1000 |
| Φ9～10mm | 750 | 1500 |
| Φ10～32mm | 850 | 1700 |
| Φ30～80mm | 2000 | 4000 |
| Screw Grinding | triangular and trapezoidal screws |
| Matched parts | special nuts to match a given shaft, tapered portion of inner or outer diameter to match a given shaft or bearing |
| General machining | center tapping, step machining, V-groove machining, screw machining, plate-groove machining, key-groove machining, flat surface machining, spot hardening |
| Surface Treatment | industrial chrome plating, low temperature black chrome treatment, other customer request |
| Thermal-spraying Ceramic-coating (best-suitable for parts that require wear and corrosion resistance) | |
| (1) standard material high carbon chromium bearing steel (SUJ2) chrome molybdenum steel (SCM415, 435) carbon steel for machinery (S45C) martensite stainless steel (equivalent to SUS440C ) austenite stainless steel (SUS303, 304) steel alloy for tools (SKS3, SK4) aluminum chrome molybdenum steel (SACM645) |
(2) standard ceramic for thermal-spraying main component: TiO2 titanium dioxide specific gravity: 4.7 hardness: 58HRC or more maximum temperature: 540℃ color: black fine surface finish by grinding |
In response to customer requirements, NB provides total manufacturing from the receipt of drawing to final inspection. Total manufacturing includes process planning, material procurement, turning, heat-treatment, milling, surface treatment and grinding.

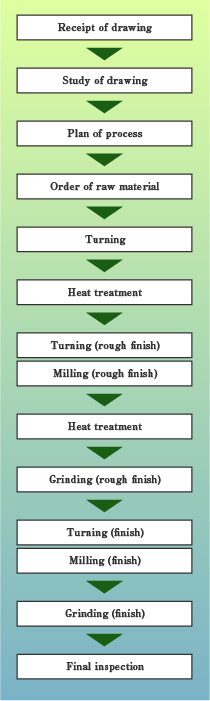

Process Chart (standard example)
 |
|
Inspection room is set at 22+/-1℃ to ensure accurate inspection.
 |
 |
High Precision Machining and Inspection Technology lead to the Final Inspection.
To ensure accuracy it is necessary to have skilled operators and inspectors at the same time. Skilled inspectors perform reliable measuring skills on the finished products.
 |
 |
Constant Temperature Room
Quality is assured with 3-D measuring machine, shape measuring machine, circularity measuring machine, etc. in the constant temperature room.
 Temperature is strictly monitored |
 Coordinate Measuring Machine |
 Circularity Measuring Machine |
 Measuring Devices and Gauges |
In order to answer every requirement from the customer, NB invest in the equipment. Following are a part of machines at hand.
 CNC Lathe  CNC Horizontal Boring and Milling Machine  CNC Horizontal Boring and Milling Machine with Sliding Table  Vertical Machining Center  Balancing Machine |
 |
 Cylindrical Grinding Machine  Cylindrical Grinding Machine  CNC Vertical Grinding Machine  CNC Internal Grinding Machine  Precision Internal Grinding Machine |
- A volume production is possible?
- Yes, we will do volume production. Please contact us.
- Which materials can you machine?
-
Standard materials are:
high carbon chromium bearing steel (SUJ2)
chrome molybdenum steel (SCM415, 435)
carbon steel for machinery (S45C)
martensite stainless steel (equivalent to SUS440C )
austenite stainless steel (SUS303, 304)
steel alloy for tools (SKS3, SK4)
aluminum chrome molybdenum steel (SACM645)
Please contact us for other materials. - Is it possible to grind stainlesss steel?
-
Yes, it is. Non-magnetic austenite stainless steel (SUS303, 304, 316) and martensite stainless steel (equivalent to SUS440C ) are examples.
Please contact us for other materials. - Is it possible to grind aluminum?
- Sorry, we cannot.
- Inspection sheet is available?
- We ship the final product with an inspection sheet. Please advise us the necessary inspection items on ordering.
- Screw grinding is possible?
- We can handle threading (triangular and trapezoidal screws). We welcome total machining including threading.
- What kind of surface treatment is available?
-
Standard treatment are:
industrial chrome plating
electroless nickel plating
black oxide
low temperature black chrome treatment (with fluoride coating)
Please contact us for other treatment.
